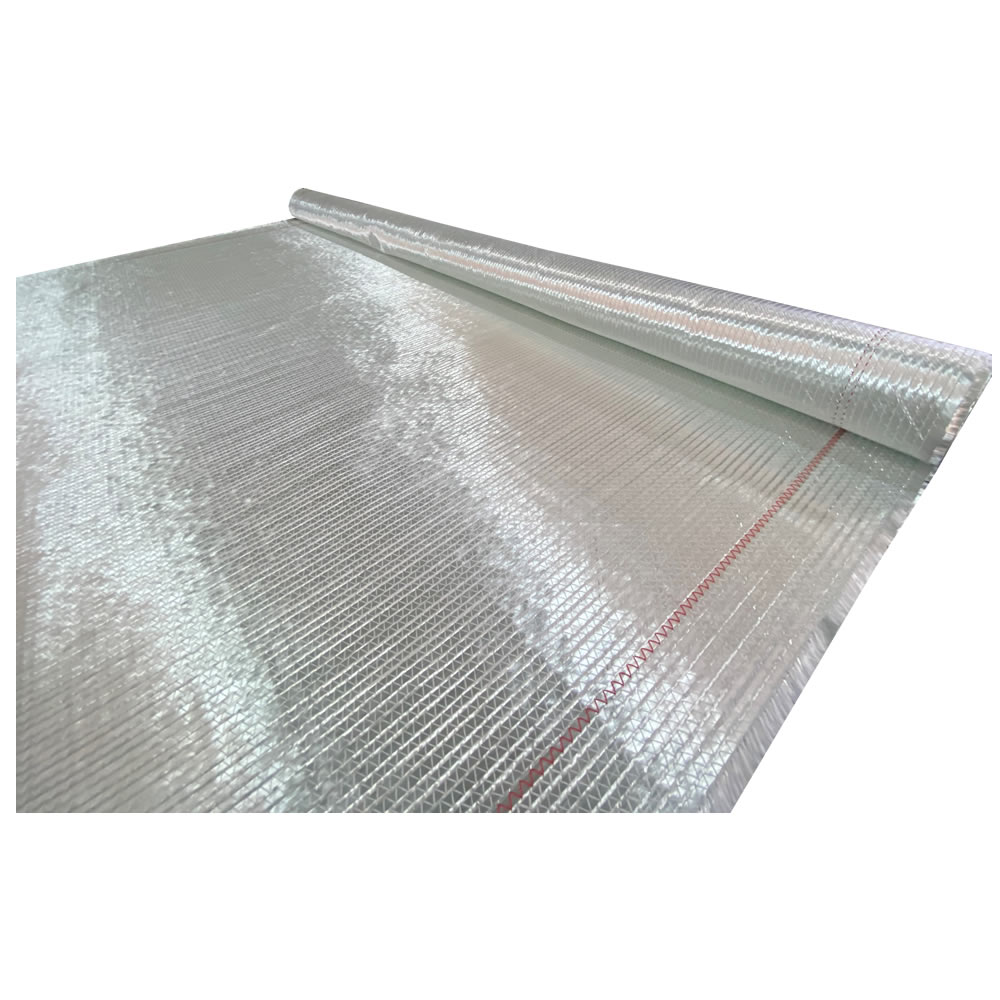

Quad Axial Fabrics have four layers positioned in four different orientations, 0°/+45°/90°/-45° using polyester stitching yarns
| Layer | Construction | Areal weight | | Tolerance | | Material | TEX |
| 4 | 0 ° | 331 | g/m² | +/- 5,0 | % | E-glass | 1.200 |
| 3 | 45 ° | 300 | g/m² | +/- 5,0 | % | E-glass | 300 |
| 2 | 90 ° | 307 | g/m² | +/- 5,0 | % | E-glass | 600 |
| 1 | -45 ° | 300 | g/m² | +/- 5,0 | % | E-glass | 300 |
Stitching 6 g/m² +/- 1 g/m² PES [Polyester] 76 dtex
Benefits of Quad Axial Fabrics
- Improved resistance to fatigue and impact
- Often easier to wet out to woven fabrics
- Improved stability even when cut
- Can be supplied as a high drape fabric
- Improves surface finish (print through) is often achieved
- Improvement in mechanical properties
